Borehole Diameter: 6-inch
Pull/Push Back Force: 5,000-lbs/Adjustable up to 5,000-lbs
Soil Types: Sand, clay & soft rock formations
Applications: Soil sampling, geotechnical testing and environmental well drilling
Transport Options: truck bed or trailer mounted
The LS T1 Geotechnical Rig is ideal for soil sampling, geotechnical testing and environmental well drilling in limited access areas. The unit is equipped with a 4-inch-diameter auger for drilling 6-inch boreholes to depths of 100 feet, and it includes a tower, cathead and 140-pound safety hammer for standard penetration testing. It offers a lifting capacity of 5,000 pounds to ensure easy removal of augers and extensions. A Honda 20-horsepower gas engine powers the LS T1 Geotechnical Rig, and the hydraulic system provides 150-rpm speed at 10-gpm. For added versatility, Little Beaver’s optional interchangeable head allows users to switch from auger to water well drilling. Another available option is Little Beaver’s Big Beaver Drill Rig.

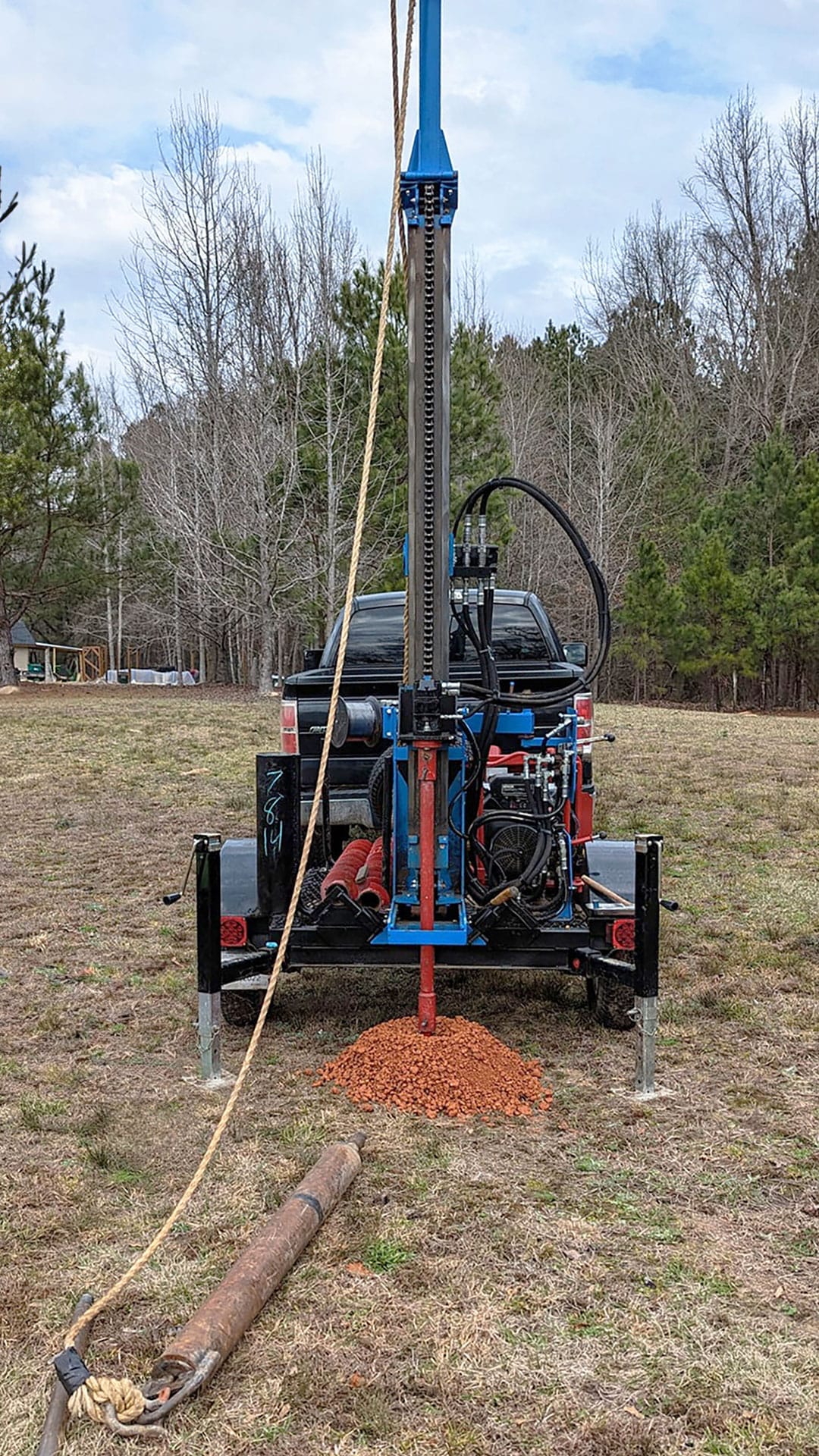

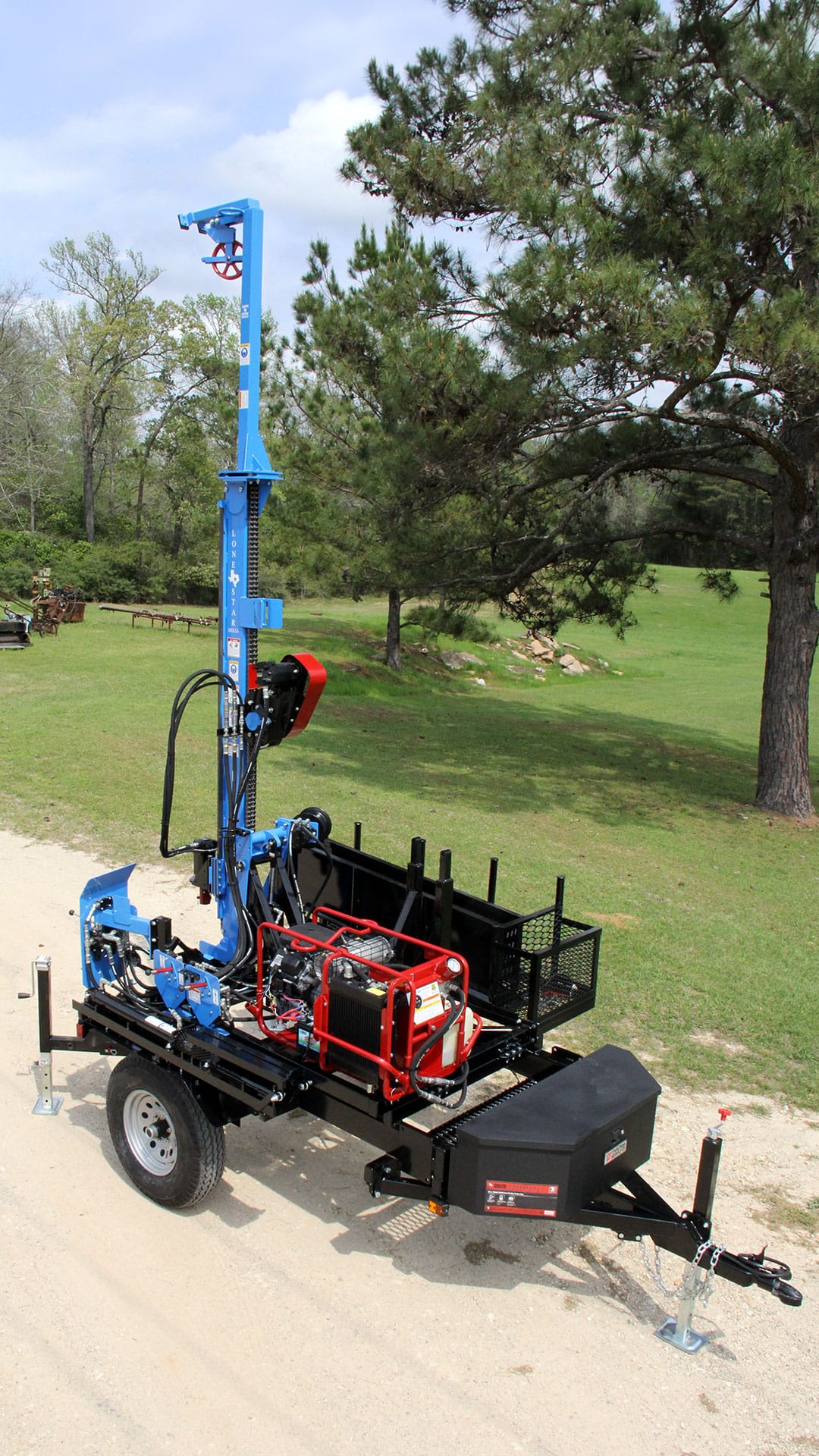

This fully hydraulic drill rig can be mounted to the bed of a small truck or flatbed with Little Beaver’s specially designed frames. It can also be mounted on a rugged, lightweight, single-axle trailer equipped with a 2-inch hitch, three leveling jacks and a spare tire. Ship the LS T1 fully assembled in a 20-foot container or knock down and palletize for transportation by truck or ocean freight.• Heavy-duty welded steel frame, rotary and swivel provide added durability.
• The LS T1 Geotechnical Rig is available as basic drill rig or full drilling package.
• LS T1 Geotechnical features a convenient by-pass flow control.
• A 2,000-pound tandem axle trailer is easily towed by an ATV or small truck.
• Optional anchor kit allows pushing beyond the weight of the trailer for additional force.
• Swivel base design swings rotary aside for quick, easy access to borehole.
Mast Folded for Travel
Rotary & Swivel
SSK-1 Cathead Soil Sampling Tools
Honda 20-Horsepower Gas Engine
Auger drive head: 150-rpm at 10-gpm
Powerful 3,000-PSI hydraulic system
50 ft. of 4 in. diameter D-series auger
Tower and cathead for standard penetration tests
Hydraulic lift cylinder to raise and lower the mast
Can be shipped fully assembled in a 20 ft container or knocked down and palletized.
140-Pound Safety Hammer
Split Spoon Samplers
AWJ Drilling Rod
|Rotary||500 ft. lbs. Max Torque at 2,500 PSI||150 RPM at 10 GPM||1-1/4 in. Box Connection Standard. Optional 1-1/8 in., 1-5/8 in. Hex|
|Trailer Mounted Option
||2,000 lb. Rated Tandem Axle||4 ft. x 5 ft. Open Grating Bed||Surge Brakes||Leveling Jacks (3)||Pipe Racks||2 in. Ball Coupler||Spare Tire|
|Truck Mounted Option||Ideal For Small Trucks||Specially Designed Frame||Jacklegs For Stabilization||Welded Steel Frame, Rotary and Swivel||Accessible Grease Points|
|Dimensions||Overall Length: 40 in.||Overall Width: 26 in.||Operating Height: 80 in.|
|Weights||Operating Weight: 1,750 lbs. Average|
|Controls||Rotary – 4 way Dented Valve||Draw-works – 4 way Spring Centered Valve||Bypass Flow Control on Draw-works Push Down||Circuit Provides Adjustable weight on Bit||Pressure Gauge – 0-3,000 PSI|
|Hydraulic Power Source||20 HP Honda Gas||3 Gal. Hydraulic Reservoir||4 Gal. Fuel Tank||Oil Cooler with 10 in. Fan||12-volt Battery with Electric Start|
|Augers & Bits||4-8 in. diameter D Series Augers available in 36, 48 or 60 in. length||Hollow stem auger in 6 or 8 in. diameter||Standard point & blade for soft soil, carbide blade for medium to hard soil, rock tooth auger for hardpan and weathered formations|
|Options||Anchor kit||Mud Rotary Package|
