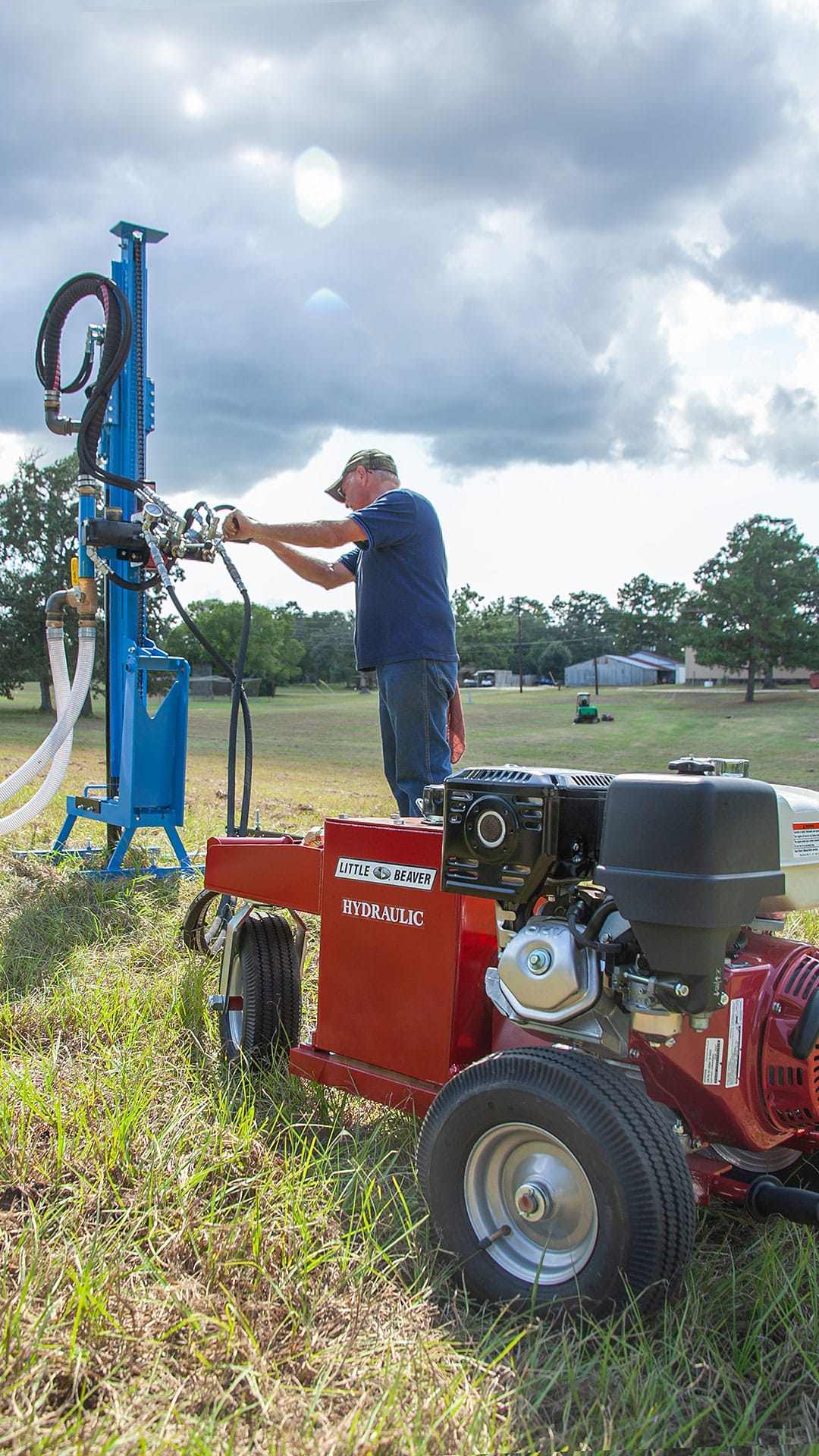

LS300H

Thanks to increased horsepower and torque, the LS300H takes drilling to new depths. Its user-friendly design provides hassle-free operation and maintenance, increasing productivity and efficiency. Ergonomic control placement allows quick adjustment of both the rotary and draw-works. Fit for drilling in sand, clay, gravel and soft rock formations, the LS300H is versatile in a variety of conditions and offers the ability to dig a 6-inch borehole to a depth of 300 feet.

• Efficiently drills 6-inch borehole to 300 foot in sand, clay, gravel and soft rock formations

• Heavy-duty welded steel frame and re-enforced table base provides added durability

• Hydraulic system features pullback forces of 2,500-lbs and push down forces adjustable up to 2,500-lbs for efficient drilling in rugged terrain

• Convenient by-pass flow switch allows pushing up to maximum force when anchored

• 3-way ball valve enables operator to quickly by-pass mudflow when adding pipe

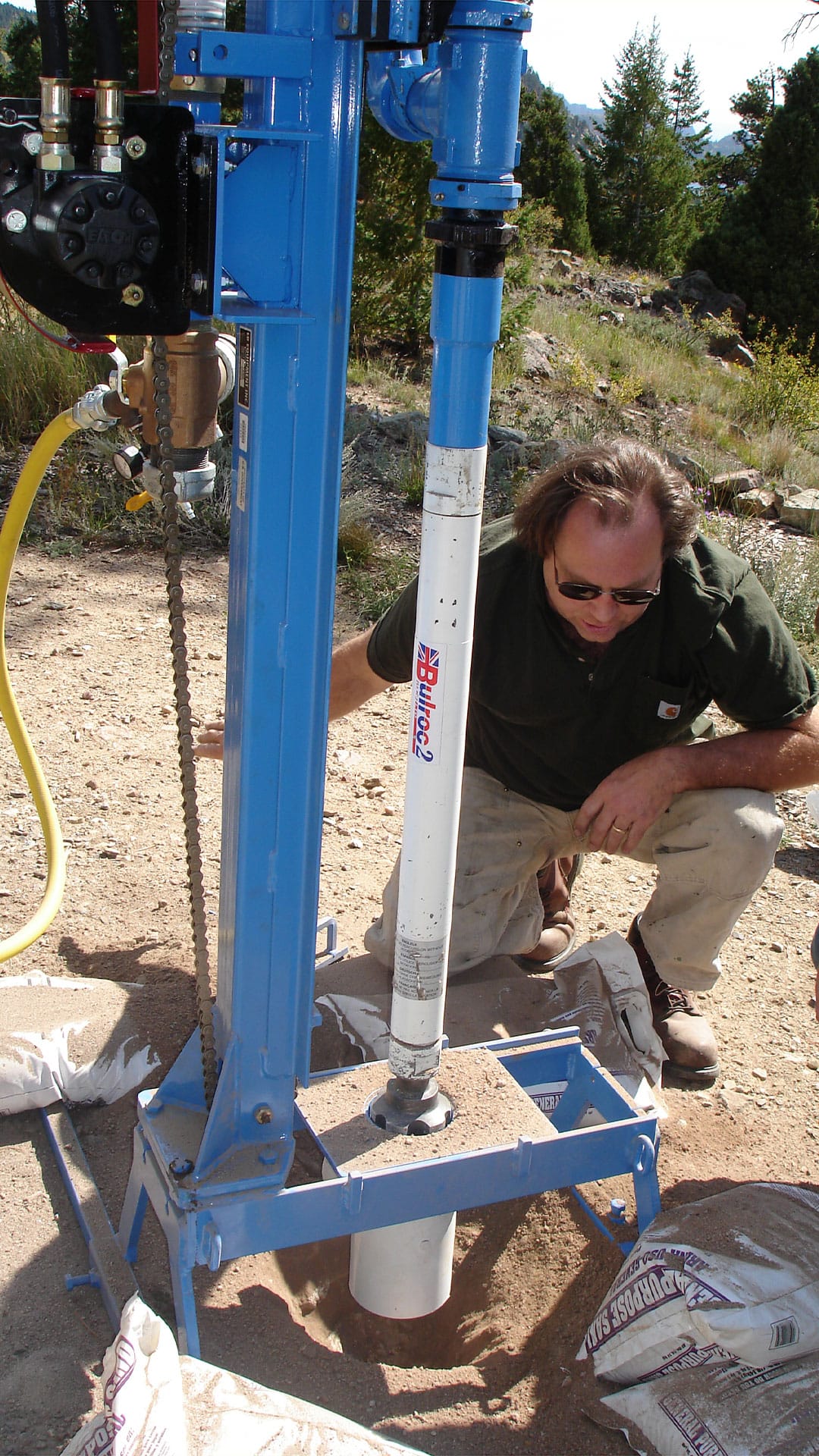

• Swivel base design moves rotary aside for full, easy access to borehole

• Equipped with 11 horsepower Honda gas or 10 horsepower Yanmar or Hatz diesel engine for worry-free power

Features

Control Valves 13HP Mud Pump

Specifications

LS300H
Mast	Rotary	Dimensions	Weights	Mud Pump	Controls	Hydraulic Power Source	Drill Stem	Options
Pull Back – 2,500 lbs	Hydraulic Top Head Drive	Height: 96.5 in.	Hydraulic Mast: 174 lbs.	13 HP Honda Gas Engine or 10 HP Diesel Engine	Rear Mounted Dual Valves	11 HP Honda Gas – 6 GPM, 2,500 PSI	2 in. ID x 5 ft. Lg, M250 Straight Thread Tool	Wheel Kit
Push Down – Adjustable 0-2,500 lbs	70 RPM Rotation Speed	Width: 12 in. (base)	Hydraulic Rotary: 70 lbs.	190 ft. Max Head	3,000 PSI Pressure Gauge	10 HP Yanmar Diesel or Hatz Diesel – 6 GPM, 2,500 PSI	Joints with Breakout Lugs	DTH Hammer Package
66 in. Travel	375 ft. lbs. Max Torque	Length: 24 in. (base)	Base: 49 lbs.	200 GPM Max Flow	Adjustable Relief Valves		Step and Chevron Drag Bits – 3-7/8 in. to 8 in. dia.
Heavy Duty Welded Steel Frame	2 in. Full Flow Side Inlet Swivel with Easily Replaceable Seals	.		2 in. Discharge
Breaks down for ease of transport	Swings Aside or Removes for access to borehole			2 in. Suction
3-Way Ball Valve
