Borehole Diameter: 6-inch Soil Types: Sand, clay & gravel soils Applications: Water wells, soil sampling, geotechnical testing, exploration shot holes & auger drilling
Borehole Diameter: 6-inch
Soil Types: Sand, clay & gravel soils
Applications: Water wells, soil sampling, geotechnical testing, exploration shot holes & auger drilling

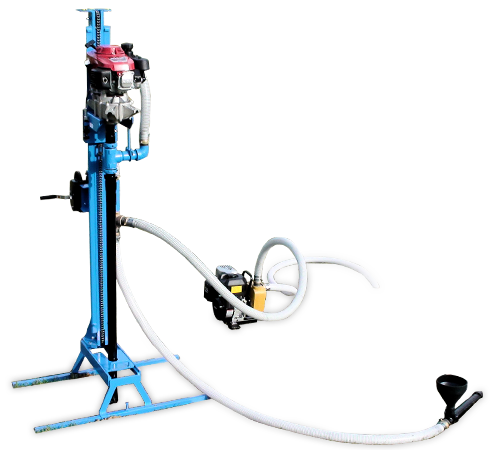

Featuring the same compact design and simple operating features as the LS100, the LS200 utilizes rugged M250 drill pipe to efficiently reach 200-foot depths. The unit sets up quick and is easy to operate, tear down and transport for maximum drilling productivity.
- The LS200 efficiently drills 6-inch borehole to 200 feet in sandy and clay terrain.
- Heavy-duty welded steel frame and robust 3,500-pound winch stands up to the most demanding drilling applications.
- Convenient swivel design allows rotary to be moved for easy access to borehole.
- Reliable Honda 5.5-horsepower gas engine provide years of worry-free power.
- Entire drill package easily fits in to 2,000-pound crate to expedite shipping and transportation.

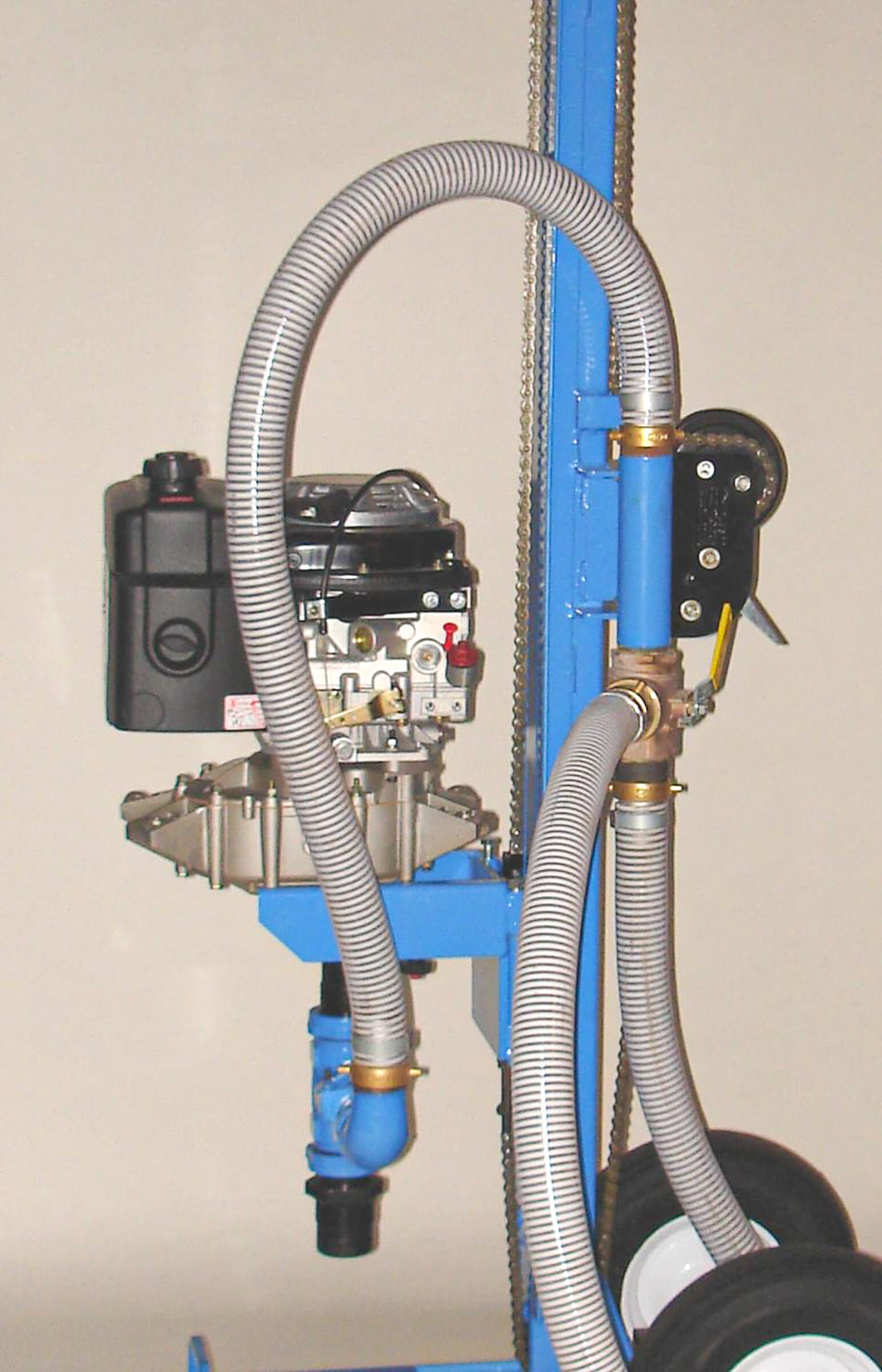

5HP Hatz Diesel Rotary
Swivel & Table Base

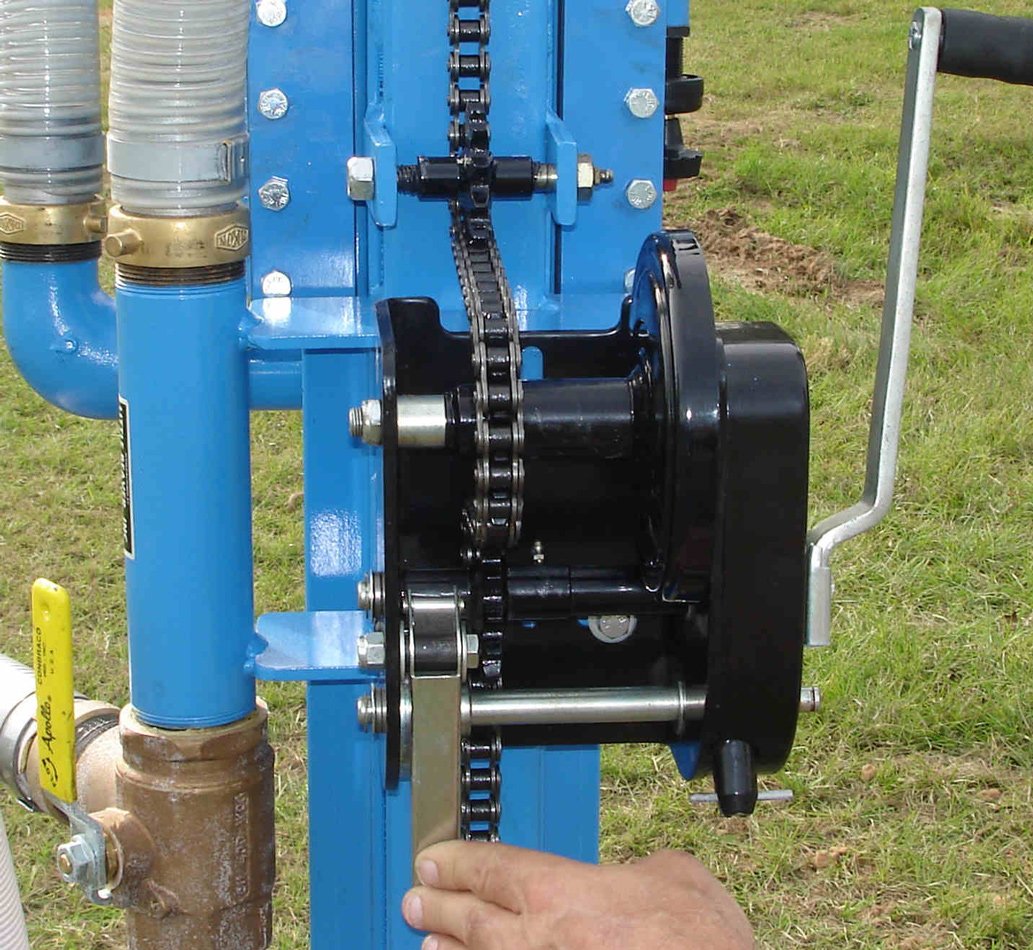

Rugged 3,500lb Winch

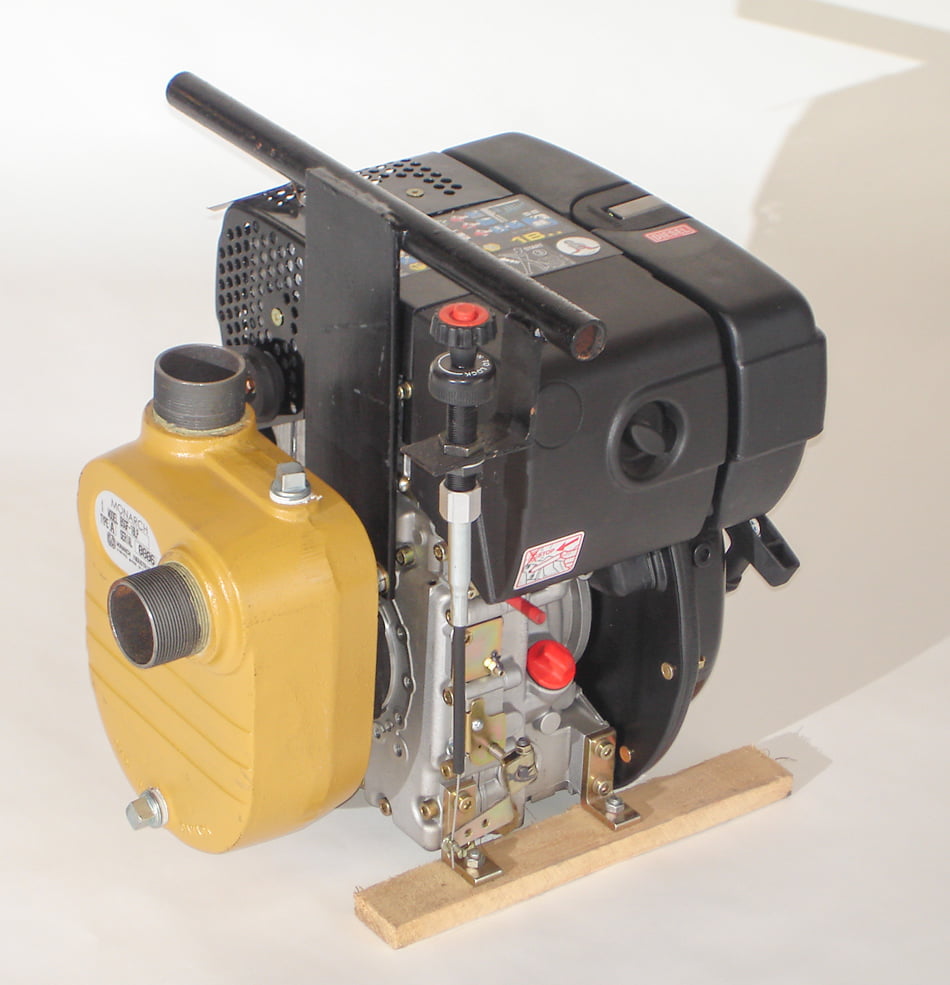

5HP Hatz Mud Pump
Water Well Drill Kit Includes:
Mud Pump – 5.5 HP
Mud Hoses – 2-in.
200 ft. of M250 Drill pipe (40pcs) with straight thread tool joints – 3 7/8” to 8” diameter
Step and Chevron Drag bits w/ break out lugs
Packs into a 2,000 lb crate for shipping and storage
|Mast||3,500 lb Winch with Brake||66 in. Travel||Heavy Duty Welded Steel Frame||Breaks down for ease of transport||3-Way Ball Valve|
|Rotary||5HP Honda Gas Engine||25:1 Reduction Gearbox||2 in. Full Flow Side Inlet Swivel with Easily Replaceable Seals||Swings Aside or Removes for access to borehole|
|Dimensions||Height: 96.5 in.||Width: 12 in. (base)||Length: 24 in. (base)|
|Weights||Mast: 136 lbs.||Rotary: 92 lbs.||Base: 49 lbs.|
|Mud Pump||5.5 HP Honda Gas Engine or 5HP Hatz Diesel Engine||100 ft. Max Head||165 GPM Max Flow||2 in. Discharge||2 in. Suction|
|Controls||Push/Pull Throttle Control with Fine Vernier||Adjustment|
|Drill Stem||2 in. ID x 5 ft. Lg, M250 Straight Thread Tool||Joints with Breakout Lugs||Step and Chevron Drag Bits – 3-7/8 in. to 8 in. dia.|
|Options||Wheel Kit||Anchor Kit|
