LS T1 Geotechnical
Borehole Diameter: 6-inch
Pull/Push Back Force: 5,000-lbs/Adjustable up to 5,000-lbs
Soil Types: Sand, clay & soft rock formations
Applications: Geotechnical testing, environmental well drilling and soil sampling
The LS T1 Geotechnical Rig combines the water well and auger rig configurations, while also featuring a soil sampling kit. Intended for geotechnical testing, environmental well drilling and soil sampling, the unit is able to drill up to 100 feet. It offers a lifting capacity of 5,000 pounds to ensure easy removal of augers and extensions. The LS T1 Geotechnical Rig is powered by a Honda 20-horsepower gas engine, and the hydraulic system offers 150-RPM speed at 10-GPM.
This fully hydraulic drill rig is mounted on a rugged, lightweight single-axle trailer complete with three leveling jacks. The unit has the capability to drill 6-inch boreholes up to 100-ft deep. The LS TI Geotechnical Rig can be knocked down and palletized for shipping.
• Heavy-duty welded steel frame, rotary and swivel provide added durability
• Available as basic drill rig or full drilling package
• Convenient by-pass flow control
• 2,000-lb tandem axle trailer is easily towed by an ATV or small truck
• Optional anchor kit allows pushing beyond the weight of the trailer for additional force.
• Swivel base design swings rotary aside for quick, easy access to borehole.

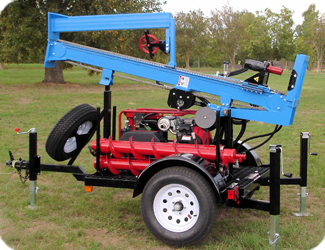

Mast Folded for Travel
Rotary & Swivel
Honda 20-Horsepower Gas Engine
Auger drive head: 150 RPM at 10-GPM
Powerful 3,000-PSI hydraulic system.
50 ft. of 4 in. diameter D-series auger
Soil sampling kit includes tower and cathead for standard penetration tests
Hydraulic lift cylinder to raise and lower the mast
Can be shipped fully assembled in a 20 ft container or knocked down and palletized.
|LS T1 Geotechnical|
|Mast||Rotary||Trailer||Dimensions||Weights||Controls||Hydraulic Power Source||Augers & Bits||Options|
|Pull Back- 5,000 lbs. at 2,500 PSI||500 ft. lbs. Max Torque at 2,500 PSI||2,000 lb. Rated Tandem Axle||Overall Length: 40 in.||Operating Weight: 1,750 lbs. Average||Rotary – 4 way Dented Valve||20 HP Honda Gas||4-8 in. diameter D Series Augers available in 36, 48 or 60 in. length||Anchor kit|
|Push Down – 5,000 lbs. at 2,500 PSI||150 RPM at 10 GPM||4 ft. x 5 ft. Open Grating Bed||Overall Width: 26 in.||Draw-works – 4 way Spring Centered Valve||3 Gal. Hydraulic Reservoir||Hollow stem auger in 6 or 8 in. diameter||Mud Rotary Package|
|78 in. Travel||1-1/4 in. Box Connection Standard. Optional 1-1/8 in., 1-5/8 in. Hex||Surge Brakes||Operating Height: 80 in.||Bypass Flow Control on Draw-works Push Down||4 Gal. Fuel Tank||Standard point & blade for soft soil, carbide blade for medium to hard soil, rock tooth auger for hardpan and weathered formations|
|6 in. by 3 in. steel tubing||Leveling Jacks (3)||Circuit Provides Adjustable weight on Bit||Oil Cooler with 10 in. Fan|
|#80 chain||Pipe Racks||Pressure Gauge – 0-3,000 PSI||12-volt Battery with Electric Start|
|2 in. Ball Coupler|
