Borehole Diameter: 6-inch
Pull/Push Back Force: 5,000-lbs/Adjustable up to 5,000-lbs
Soil Types: Sand, clay & soft rock formations
Applications: Soil sampling, geotechnical testing, exploration shot holes & auger drilling
The LST1A+ features an auger head drive in place of the standard water swivel found on the Basic and Plus units, making it particularly suitable for auger drilling and soil sampling. This fully hydraulic drill rig is mounted on a rugged, lightweight single-axle trailer complete with three leveling jacks. The unit has the capability to drill 6-inch boreholes up to 100-feet deep in normal soils using the standard auger, and up to 50-feet with the hollow stem auger. The LST1A+ can be knocked down and palletized for shipping.
- Heavy-duty welded steel frame, rotary and swivel provide added durability.
- The LST1A+ is available as basic drill rig or full drilling package.
- The LST1A+ features a convenient by-pass flow control.
- A 2,000-pound tandem axle trailer is easily towed by an ATV or Basic Utility Vehicle.
- Optional anchor kit allows pushing beyond the weight of the trailer for additional force.
- Optional soil sampling kit includes tower and cathead for standard penetration tests.

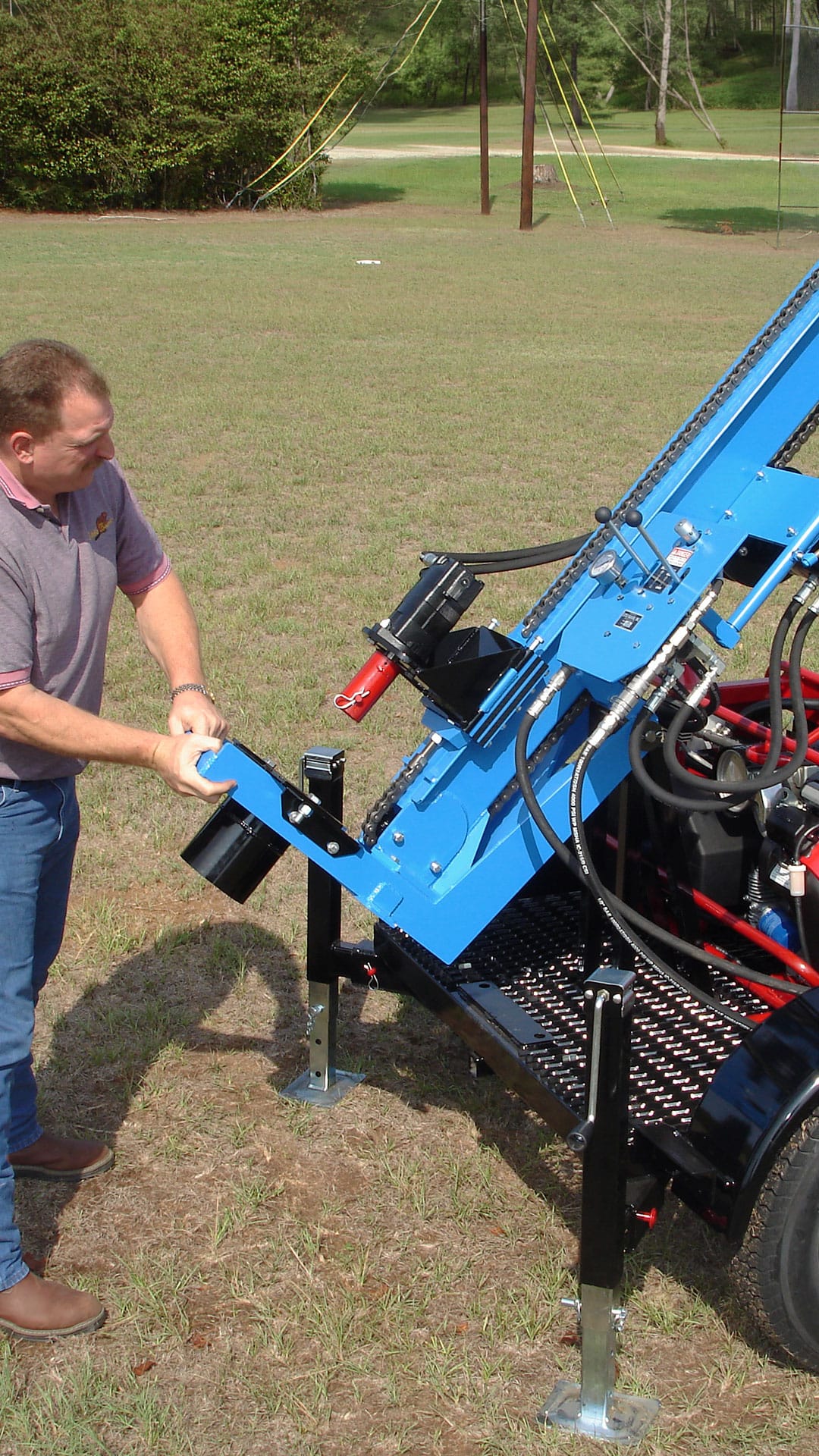

- Swivel base design swings rotary aside for quick, easy access to borehole.

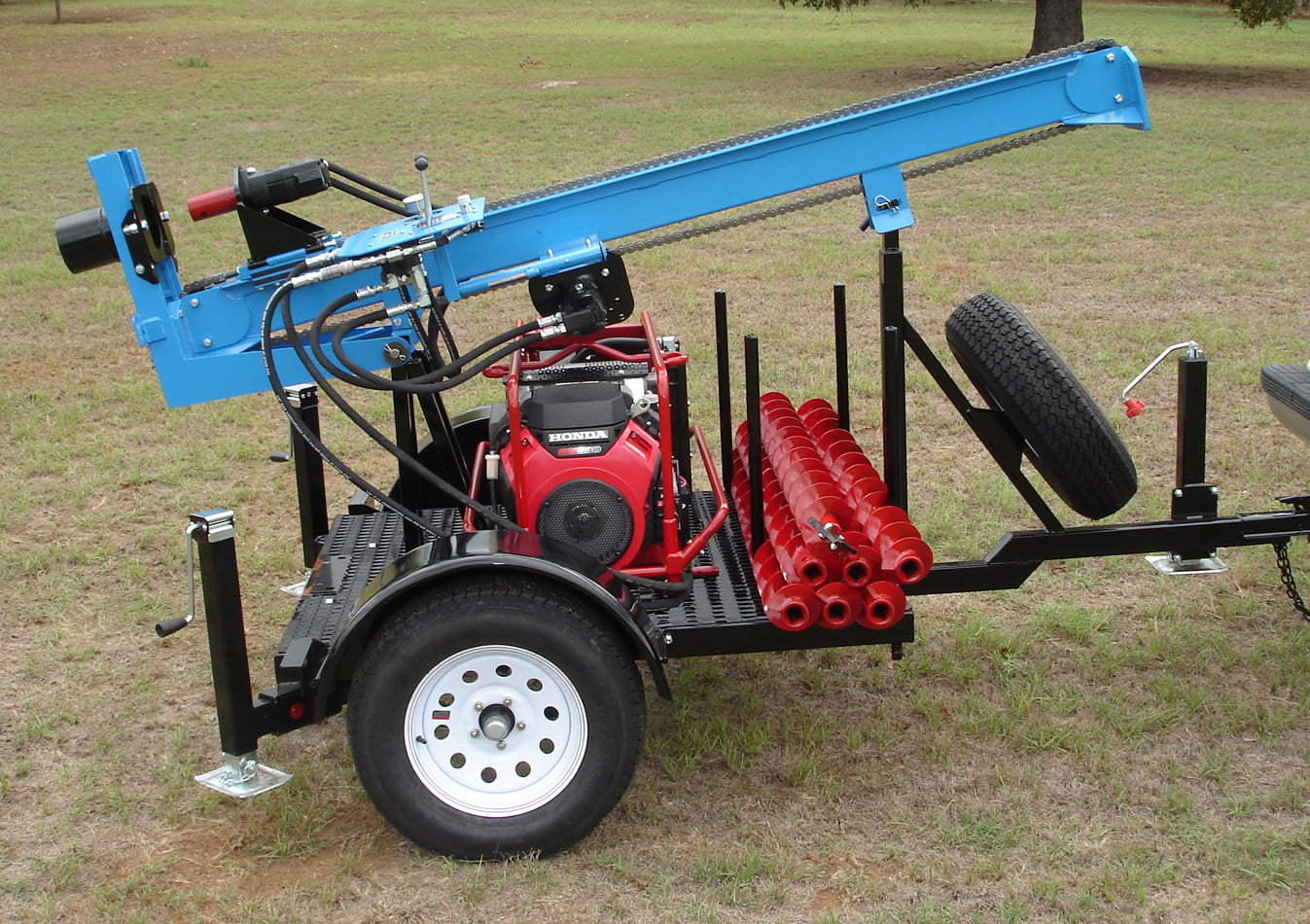

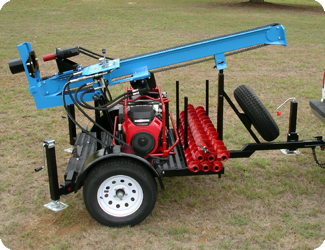

Mast Folded for Travel
Rotary & Swivel
Water Well Drill Kit Includes:
Standard 20-HP Honda Gas Engine
Auger drive head: 150 RPM at 10-GPM
Powerful 3,000-PSI hydraulic system.
50 ft. of 4 in. diameter D-series auger
Can be shipped fully assembled in a 20 ft container or knocked down and palletized.
Dimensions L (overall) x W (overall)
Mud Pump Options
Hydraulic Power Source
Hydraulic Power Source Details
Augers & Bits
Augers & Bits Lengths
Optional Anchor Kit

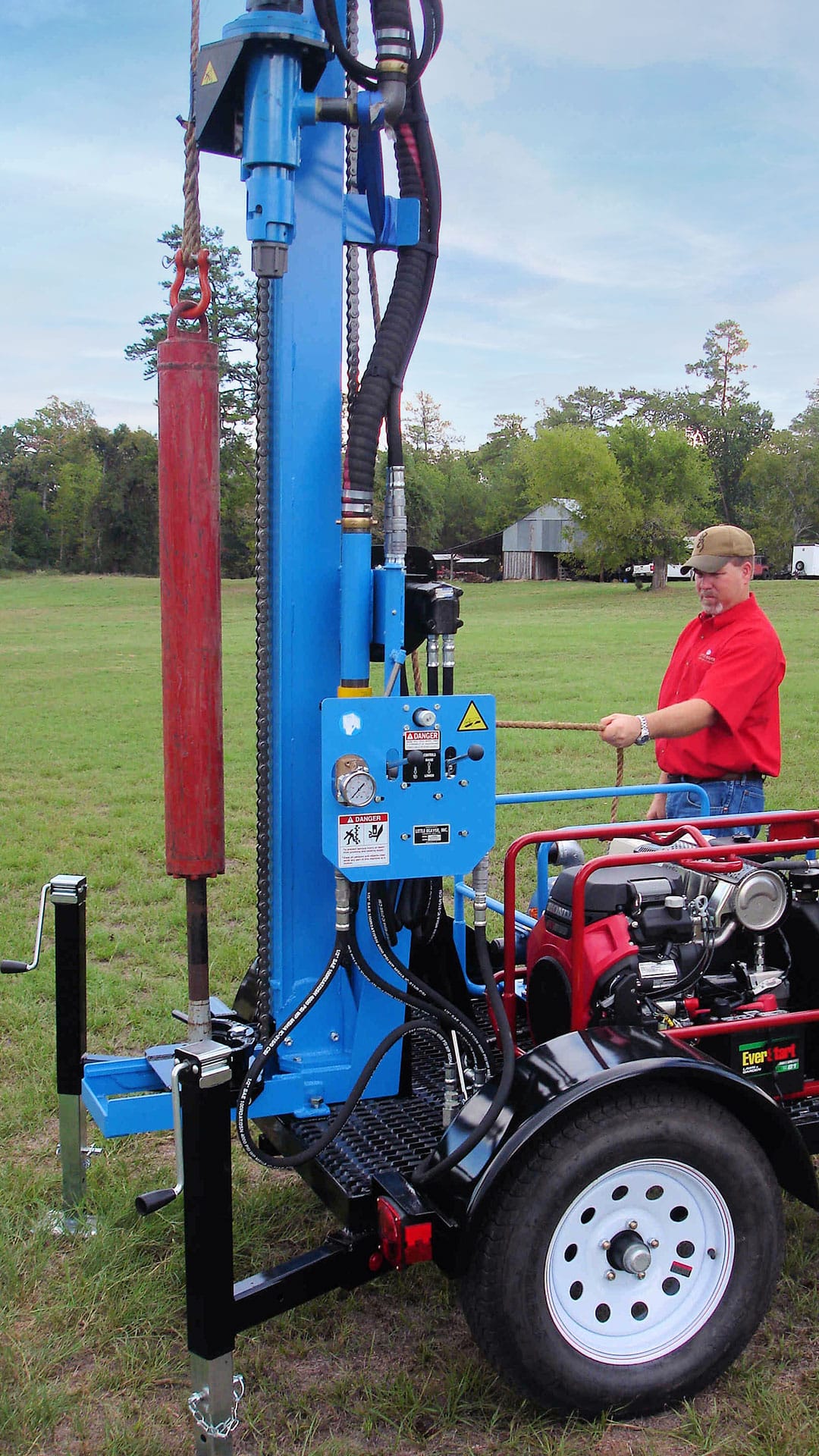

Optional SPT kit with cathead & tower
Payable Every Year
Pull back – 5,000 lbs. (2,267.96 kg) at 2,500 PSI (17,236.89 kPa)
Push down – 5,000 lbs. (2,267.96 kg) at 2,500 PSI (17,236.89 kPa)
6 in. x 3 in. (15.24 x 7.62) steel tubing
78 in. (198.12 cm) travel
150 RPM at 10 GPM (37.85 l/m)
500 ft. lbs. (677.9 N m) at 2,500 PSI
130 x 68 in. (330.2 x 172.72)
70 in. traveling (177.8 cm)
130 in. operating (330.2 cm)
20 hp Honda gas – 10 GPM at 3,000 PSI
(37,85 l/m at 20,684.27 kPa)
19 hp Kohler diesel – 10 GPM at 3,000 PSI
(37,85 l/m at 20,684.27 kPa)
3 Gal. (11.4 L) hydraulic reservoir
4 Gal. (15.25 L) fuel tank
Built-in heat exchanger and cooling fan
12-volt battery with electric start
Rotary – 4 way detented valve
Draw-works – 4 way spring centered valve
Standard point & blade for soft soil
Carbide blade for medium to hard soil
Rock tooth auger for hardpan and weathered formations
4, 5, 6, 7 or 8 in. (10.16-, 12.70-, 15.24-,17.78-, and 20.32-cm diameters) available in 4 or 5 ft. (1.2- or 1.5-m) lengths
Hollow stem auger in 6 or 8 in. diameters (15.24- and 20.32-cm diamters)
1-1/4 in. (3.17 cm) box connection standard. optional 1-1/8 in. (2.86 cm), 1-5/8 in. (4.13 cm) hex
1,750 lbs. average (787.5 kg)
Bypass flow control on draw-works push down
Circuit provides adjustable weight on bit
Pressure gauge – 0-3,000 PSI (0 - 20,680 kPa)
