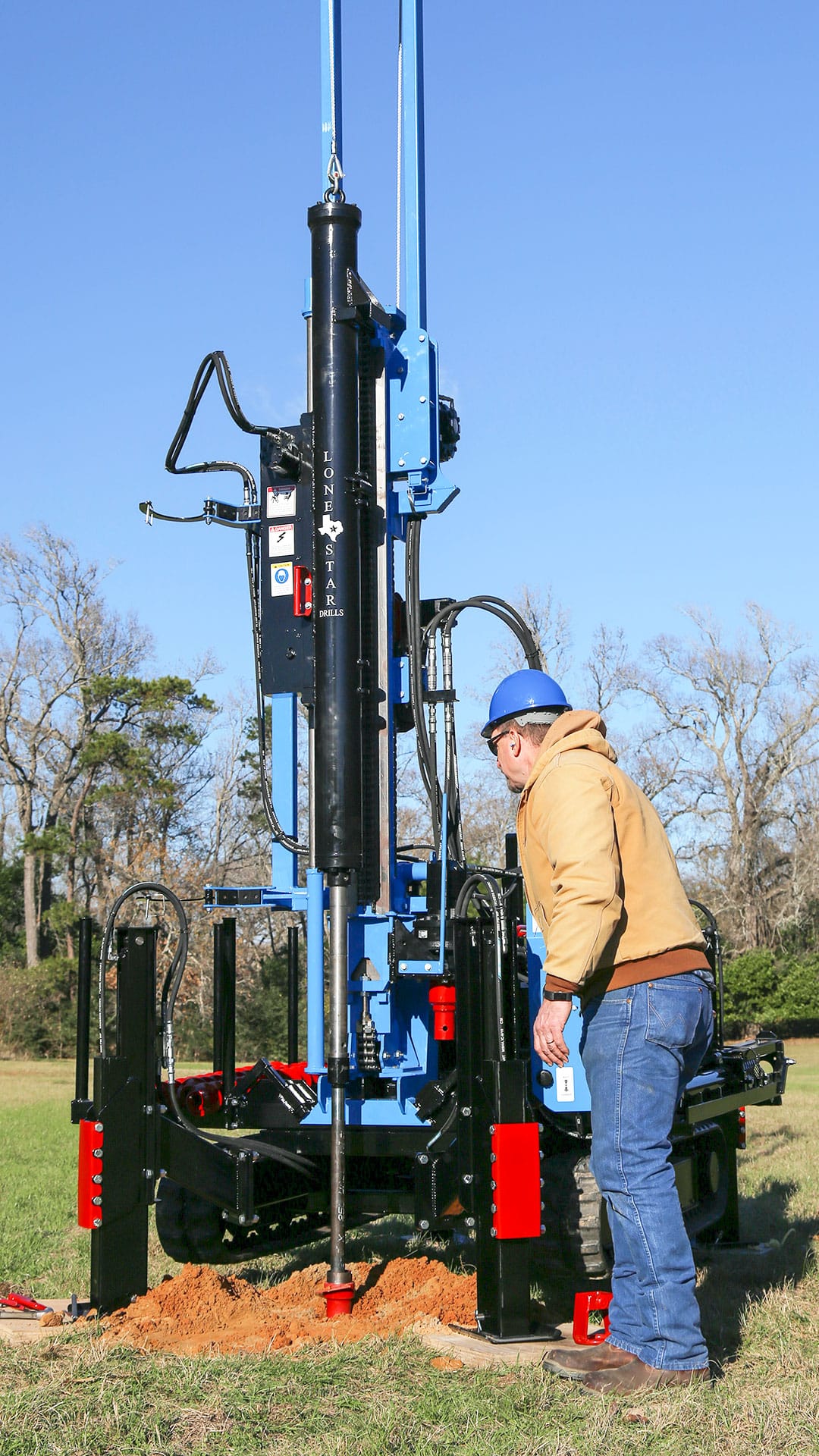

LSGT+HDA Soil Sampling Drill
The LSGT+HDA, the newest of Lone Star Drills’ geotechnical rigs, was designed to address the growing demand from customers to be able to access remote or environmentally sensitive areas, where the ground can’t be disturbed by a large truck and trailer. The drill is based on the design of the LST1G+HDA, with added tracks and hydraulic leveling control. Travel is remotely controlled, with a 50-foot tether cord included in case of battery power loss in the remote. The drill comes standard with a 140-pound automatic hammer to ensure accurate SPT sampling as well as easy operation. This model comes standard with a 3,000-psi hydraulic system and 25-horsepower Honda iGX800 gas engine. The drill’s 12.5-gpm hydraulic power pack achieves a rotary speed of 100 rpm. The system provides a hydraulic winch with 1,500 pounds of pull for raising the automatic hammer and sampling string. A diesel option is also available.
- Drilling Depth: 100 ft (30.5 m)
- Borehole Diameter: 6 in (15 cm)
- Pull/Push Back Force: Up to 8,500 lbs (3,855.5 kg)
- Soil Types: Sand, clay & soft rock formations
- Applications: Soil testing, core sampling, geotechnical engineering, standard penetration testing (SPT) and well monitoring
Downloads

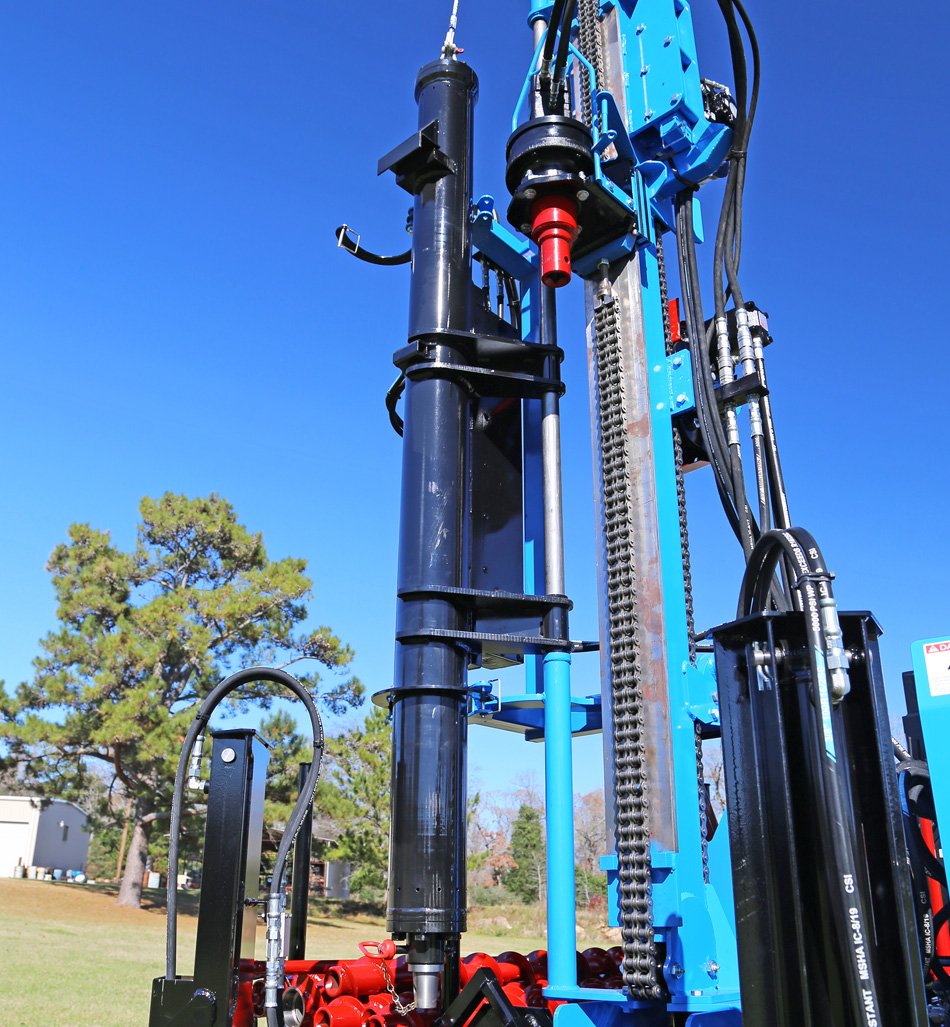

140-pound Automatic SPT Hammer

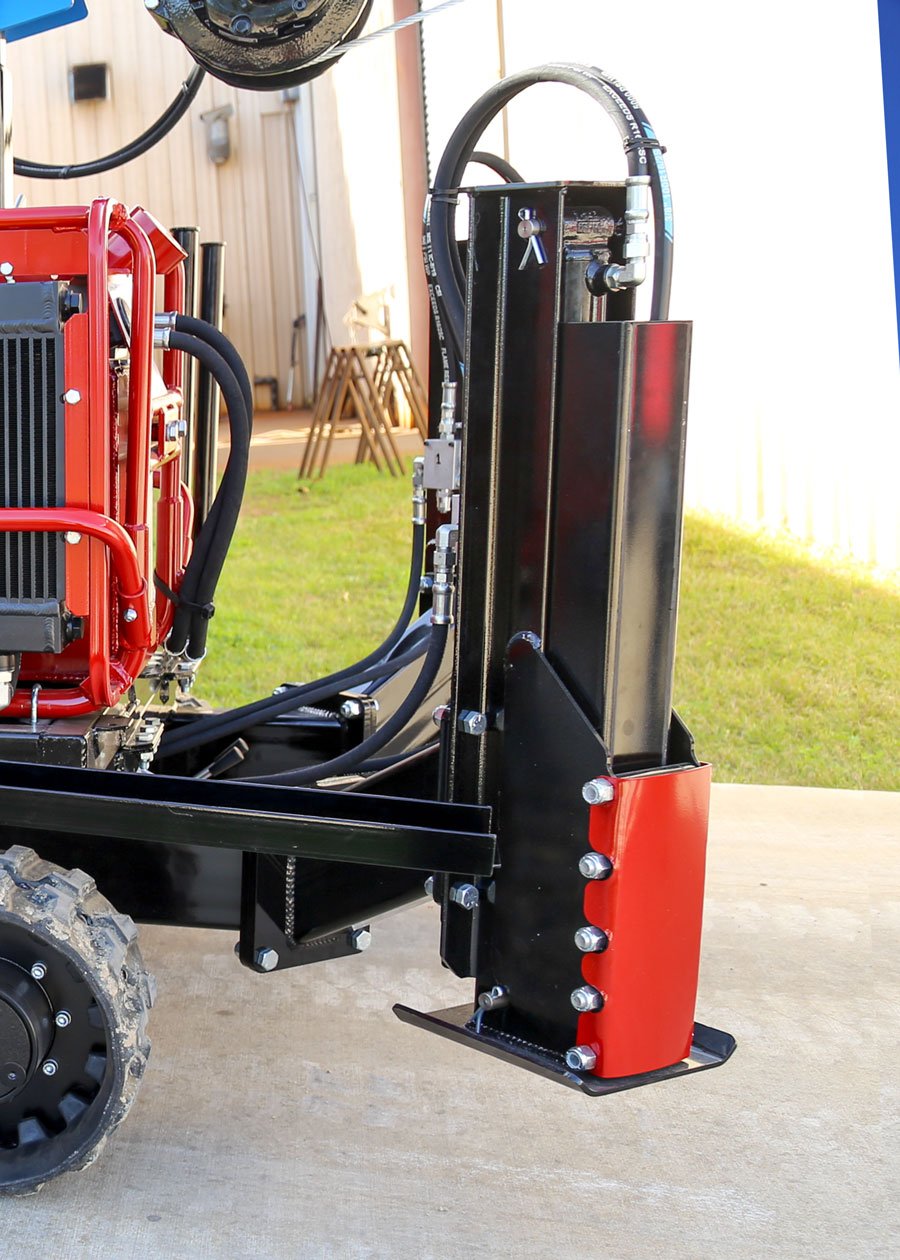

Hydraulic Leveling Controls
Rotary and Swivel

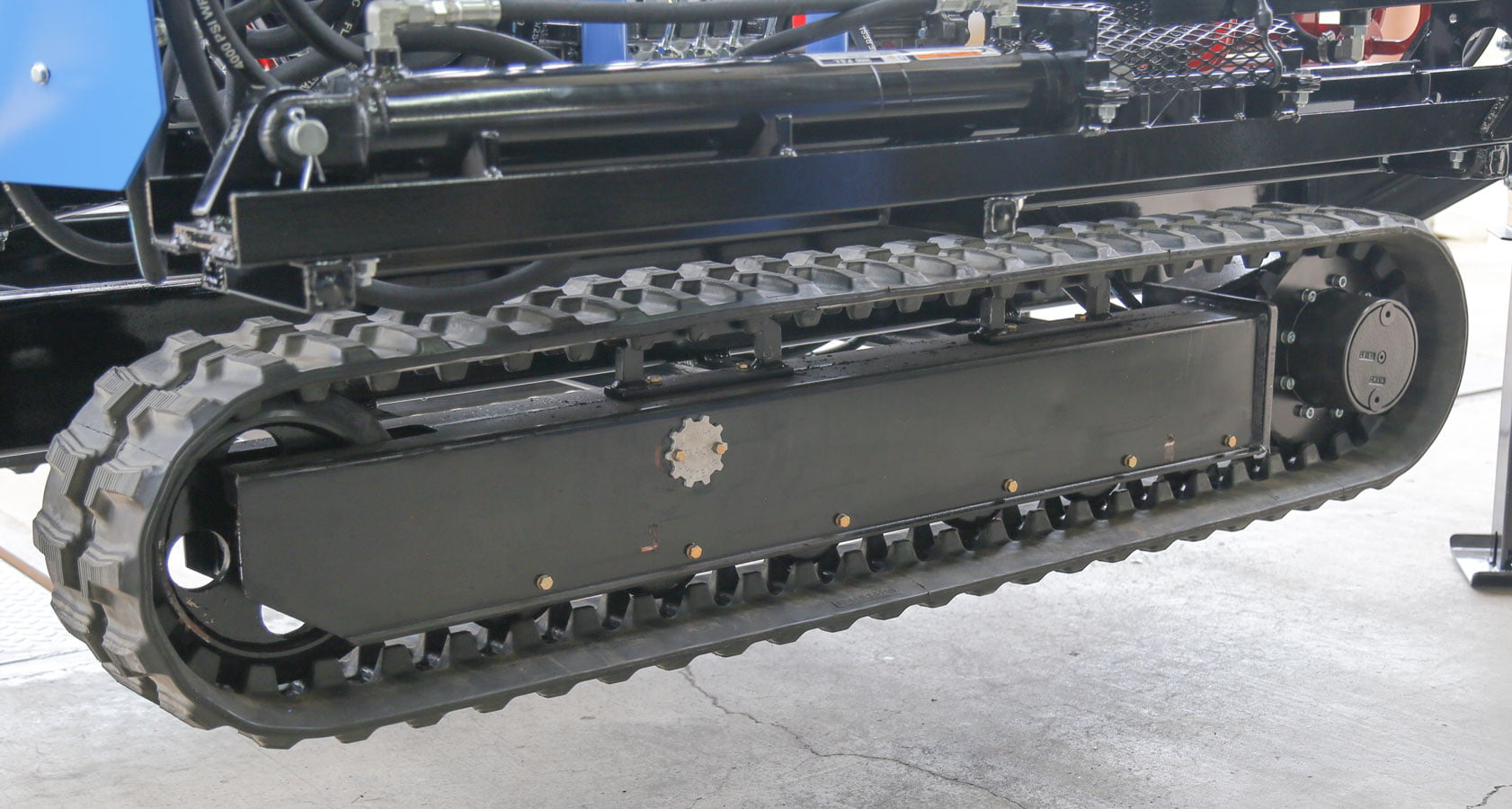

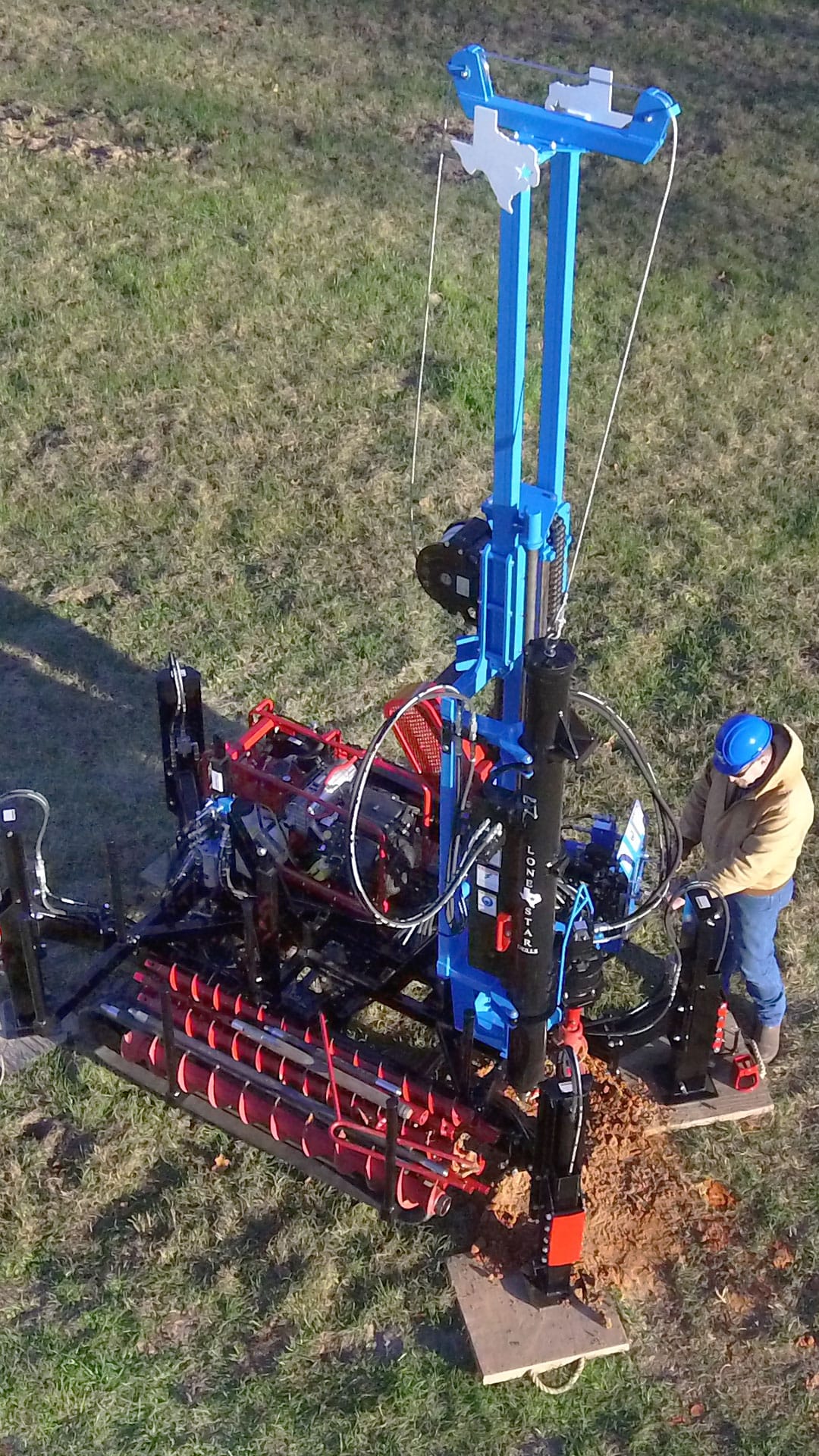

Track Mounted

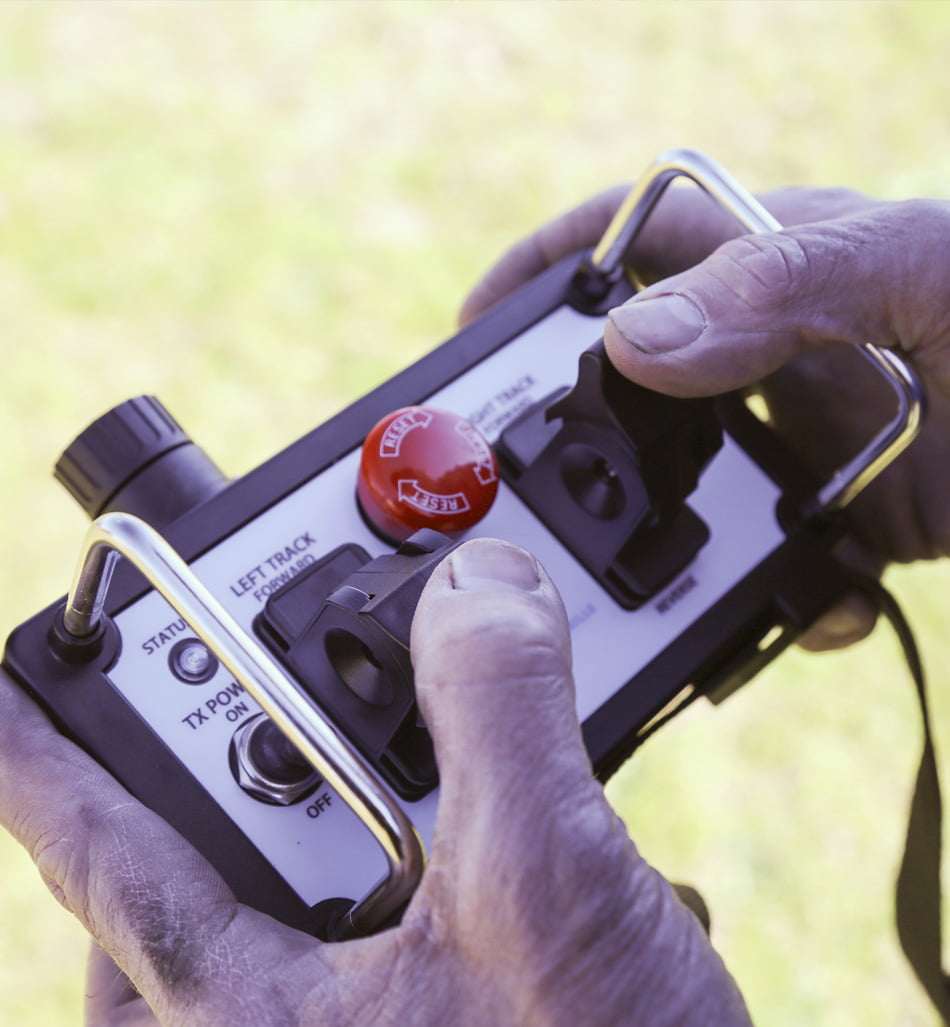

Remote Control Operation
Drill Rig Package
- Honda iGX800 25-horsepower gas engine
- Powerful 3,000-psi hydraulic system
- Hydraulic lift cylinder to raise and lower the mast
- Split spoon samplers
- AWJ drilling rod
- Can ship fully assembled in a 20-foot container or by truck
Trailer Mounted Option
- Single axle
- 3,500-pound (1,591-kg) rated
- Can be towed by ATV or truck
- 4-by-5-foot open grating bed
- Three leveling jacks
- 2-inch ball coupler
- Spare tire
Augers & Bits
- 3- to 8-inch diameter D-series augers available in 3-, 4- or 5-foot lengths
- Hollow stem auger in 6- or 8-inch diameter
- Standard point and blade for soft soil, carbide blade for medium to hard soil, rock tooth auger for hardpan and weathered formations
Truck Mounted Option
- Specially designed frame
- Accessible grease points
Optional Component
- Interchangeable head
Specifications
Soil Sampling Kit Included
Drilling Depth
Borehole Diameter
Dimensions LxWxH
Operating Weight
Auger Diameter
Auger Length
Pull/Push Back Force
Max Drilling Torque
Drilling Angle
Frame
Transport Options
Engine
Fuel Tank Capacity
Speed
Rotary
Rotary Controls
Draw-works Controls
Hydraulic Power Source
Hydraulic Reservoir
Oil Cooler
LSGT+HDA
100 ft (30.5 m)
6 in (15.2 cm)
-
4,750 lbs (2,310 kg)
3 - 8 in (7.6 - 20.3 cm)
3, 4 or 5 ft (.91, 1.22 or 1.52 m)
Up to 8,500 lbs (3,855.5 kg)
1,100 ft*lbs (1,491.4 N m) @ 2,800 psi
Vertical only
Heavy-duty welded steel
-
Honda iGX800 25 hp (18.64 kW)
5 gal (18.9 L)
100 rpm @ 12.5 gpm (51.1 L/m)
1.25-in (3.18-cm) box connection standard, 1.13-in (2.85-cm) or 1.63-in (4.13-cm) in hex optional
-
4-way spring-centered valve, bypass flow control on push down, circuit provides adjustable weight on bit
-
5 gal (18.9 L)
Oil cooler with 10 in (24.4 cm) fan
