LS200H Water Well Drill

LS200H Portable Hydraulic Water Well Drill

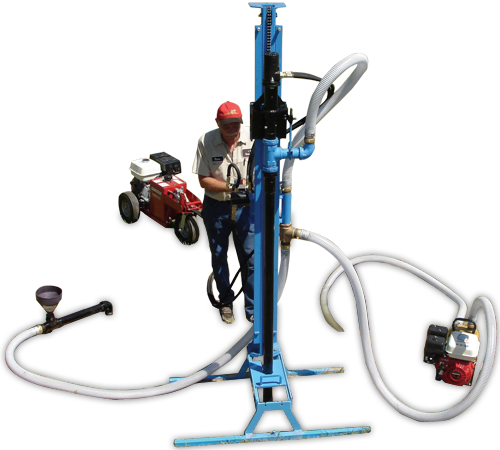

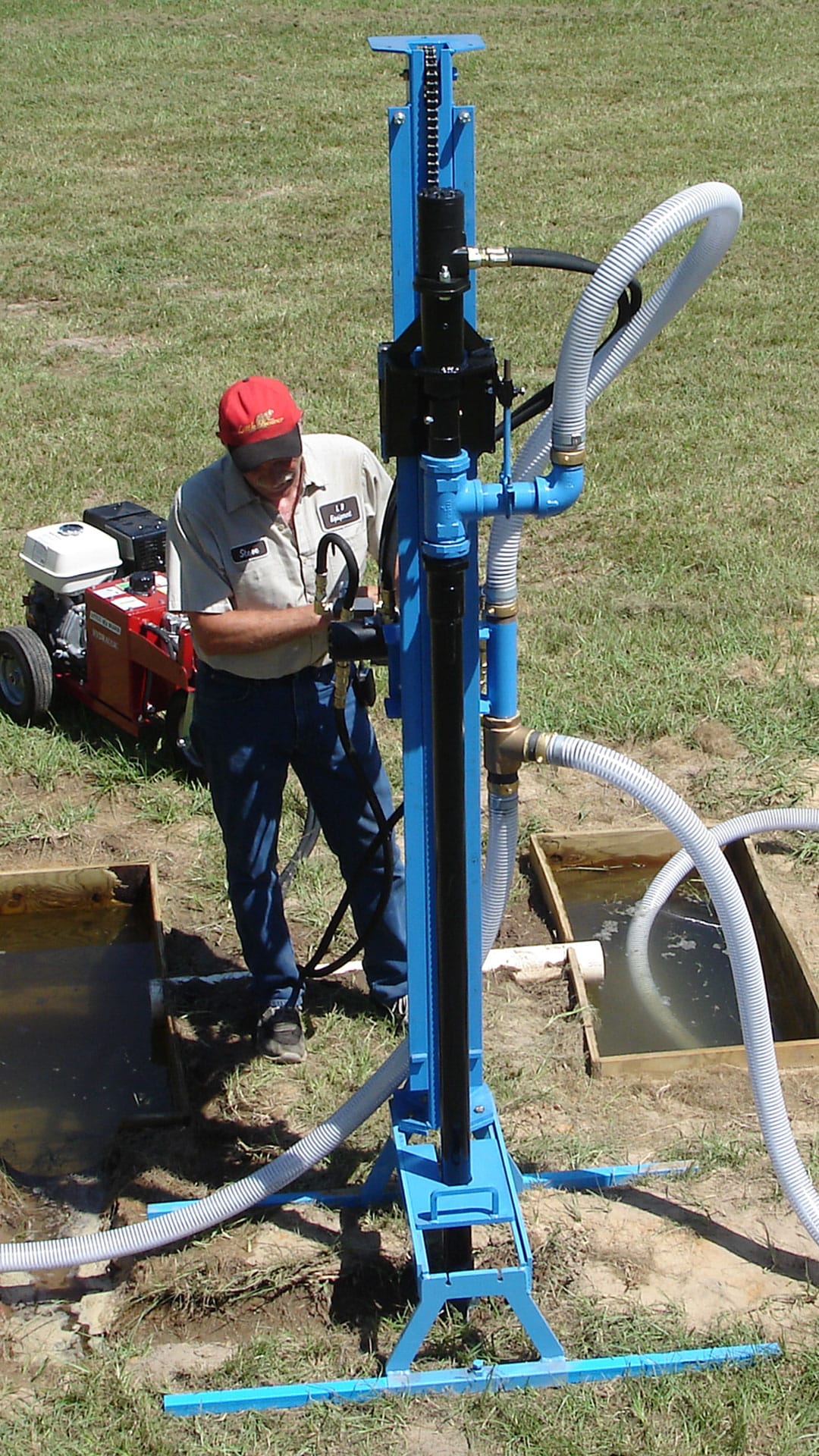

The LS200H is excellent for drilling applications that require the added power and durability of a hydraulic system. The LS200H features a simple hydraulic system with pullback/pushdown force of up to 5,000 pounds for efficiently drilling to 200 feet in sand, clay and soft rock formations. The drill’s heavy-duty welded steel frame and rugged hydraulics stand up to the most demanding applications. The LS200H features a convenient bypass flow control for pushing to maximum force when anchored, and the drill’s swivel base design swings the rotary aside for quick, easy access to the borehole.

  • Drilling Depth: 200 ft (61m)
  • Borehole Diameter: 6 in (15 cm)
  • Pull/Push-Back Force: 5,000 lbs/Up to 5,000 lbs (2,268 kg)
  • Soil Types: Sand, clay and soft rock formations
  • Applications: Water well drilling

Package Includes

  • Mud pump
  • 2,500-psi hydraulic system
  • Three 2-inch-diameter mud hoses (one 10-foot suction and two 10-foot discharge/bypass)
  • 200 feet of 2-inch diameter M250 drill pipe with straight thread tool joints
  • 4- and 6-inch step drag bits
  • 6- and 7-inch reamers
  • Toolbox and spare parts

Optional Components

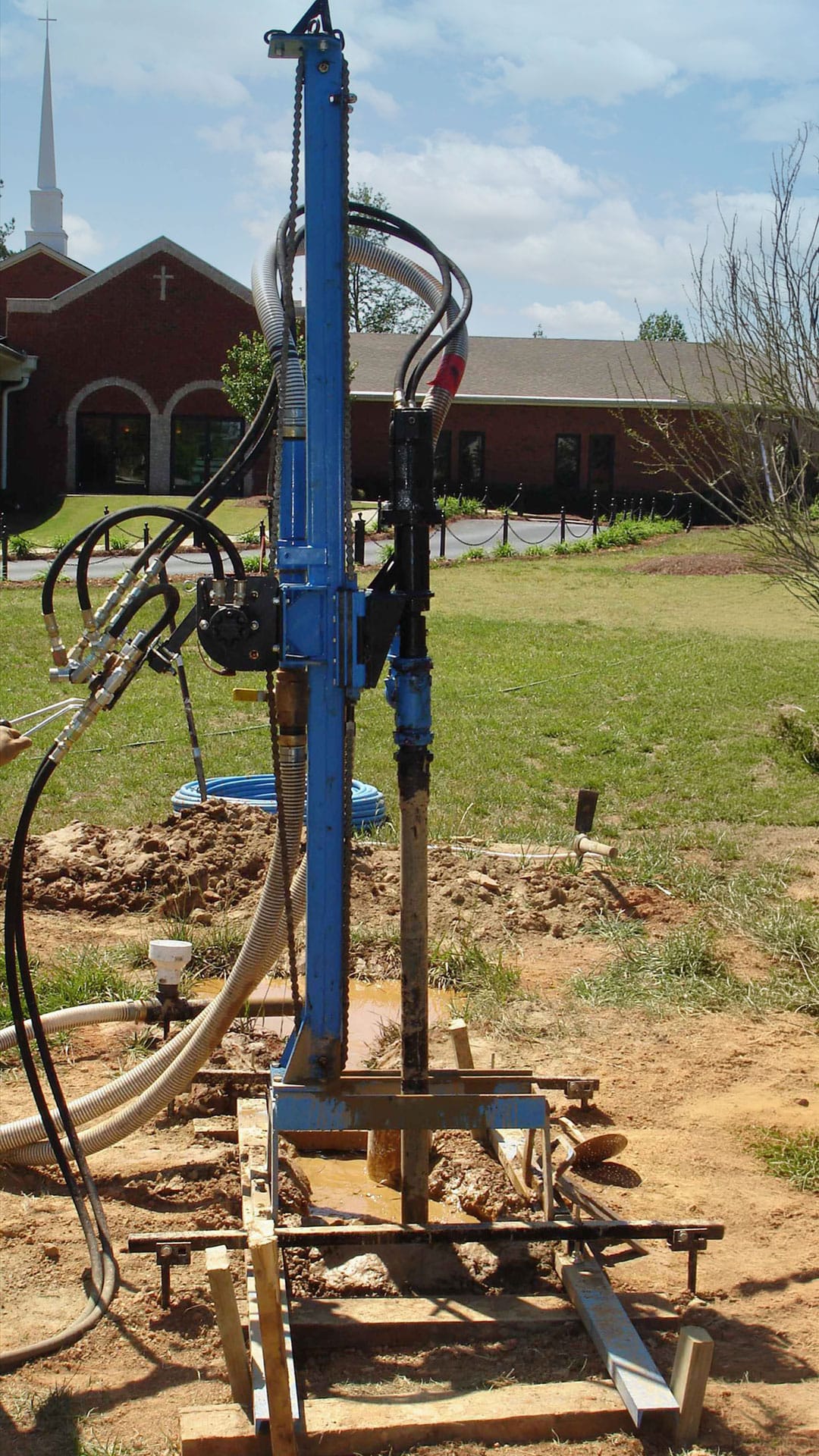

  • Anchor kit
  • Down-the-hole hammer package
  • Wheel kit
  • Diesel engines for hydraulic system and mud pump

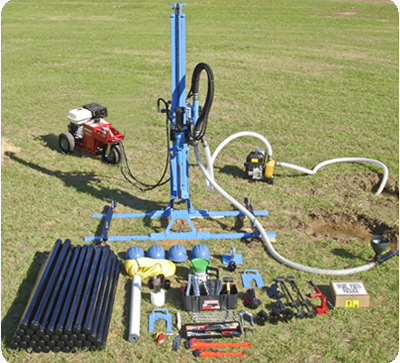

Hydraulic water well drill kit

Specifications

SPECIFICATIONS

Drilling Depth

Borehole Diameter

Pull/Push-Back Force

Mast Weight

Max Drilling Torque

Speed

Hydraulic Power Source

Hydraulic System

Hydraulic Reservoir

Mud Pump

Max Head

Max Flow

Discharge/Suction

Frame

Transportation

LS200H

200 ft (61 m)

6 in (15 cm)

Up to 5,000 lbs (2,268 kg)

174 lbs (78.9 kg)

655 ft-lbs (888 N-m)

60 rpm at 6 gpm (22.7 L/m)

Honda 11 hp (8.2 kW)

6 gpm (22.7 L/m) at 2,500 psi

5 gal (18.9 L)

Honda 5.5 hp (4.1 kW)

100 ft (30.5 m)

165 gpm (624.6 L/m)

2 in (5.08 cm)

Heavy-duty welded steel

Packs into two separate crates for shipping and storage
